AM S5500P
The RICOH AM S5500P is the future of Additive Manufacturing. With its generous build volume, the AM S5500P enables you to produce many components at once, ensuring fast, flexible and cost-effective production. It uses Powder Bed Fusion (or SLS technology) to melt polymer powder to produce parts, and you can choose from a selection of polymer-based materials. Our technology uses heat and a smart re-coater combined with a laser to manufacture end-use components, which can be used in a range of industries such as Aerospace, Automotive and Medical. Using advanced thermal control parameters, you benefit from highly accurate and repeatable manufacturing capabilities.
- Funcionalidades e vantagens
-
High-end additive manufacturing technology with a range of high performance materials for the manufacturing industry and beyond.
- Substantial build size
- Advanced Temperature Control
- Smart re-coater and dual powder distribution
- High machine reliability
- Wide material selection – you can select materials from Ricoh’s approved range, including Polypropylene (PP), PA6GB, PA11, PA12
- Supported by Ricoh Service

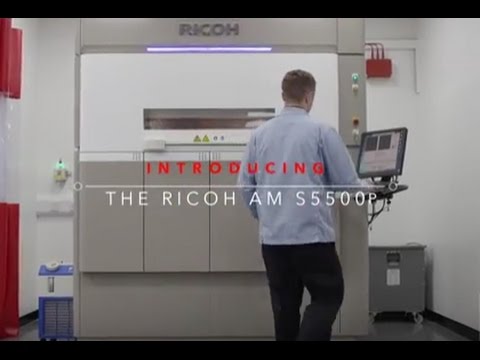

Video: Meet the RICOH AM S5500P
Meet the RICOH AM S5500P - Especificações técnicas
-
GERAL Effective work size (W x D x H) 550 x 550 x 500 mm Actual part size (W x D x H) 500 x 500 x 480 mm Laser CO2 100 W Beam diameter Ø 0,48 mm Layer thickness 0,08 - 0,2 mm Scanning speed 15 m/sec (3-axis digital galvanometer mirror) Application software SEMware, Windows 7 Professional, CPU Intel Corei3, 2.4 GHz, 2 GB Input data STL Power supply requirements AC 200V +/- 10% 50A 50/60Hz, 3PH Air conditioning requirements 18-24°C (set within +/- 2°C when modeling) Funcionalidades básicas Parameter setting flexibility, PA12 support, PA6 GB support, PP support Specific gravity PA12: 1,03 (26°C), PA11: 1,01 (20°C), PP: 0,84- 0,85 (20°C) Bulk density PA12/PP: 0,43 g/cm³ / 0,51 g/cm³ Tap density PA12: 0,55 g/cm³, PA12G: 1,23 g/cm³, PA11: 0,62 (W)/0,66 (B) g/cm³, PP: 0,58 g/cm³ Mean particle size PA12: 45+/-5 µm, PA11: 46 (W)/50 (B) µm, PP: 51 µm 90% particle range PP: 33-80 Melting point PA12: 185°C, PA11: 201°C, PP: 125°C Deflection temperature under load (0.45 Mpa) PA12: 174°C Deflection temperature under load (1.8 Mpa) PA12: 100°C / 128°C Maximum extension stress PA12: 47 Mpa, PA11: 45 Mpa, PP: 21,4 Mpa Tensile elasticity PA12: 1 689 Mpa, PA11: 1 500 Mpa, PP: 907 Mpa Breaking elongation PA12: 14,5%, PA11: 45%, PP: 529% Maximum bending stress PA12: 58,5 Mpa, PA11: 46 Mpa, PP: 22,8 Mpa Bending strain PA12: 15,3% / 7,4% Flexural modulus PA12: 1 406 Mpa, PA11: 1 200 Mpa, PP: 698 Mpa Impact strength (notched) PA12: 2,36 kJ/m² / 3,05 kJ/m² Chemical stability PA12/PA11: Alkali, Hydrocarbon, Fuel, Solvent Applications PA12: Functional testing, Design review, Automotive interior part, Tray, Mechanical, PA11: Functional testing, Design review, Hinge parts, PP: Functional testing, Design review, Hinge parts Dimensões (L x P x A) 2 100 x 1 520 x 2 400 mm Peso 2 000 kg
